6 Meter Antenna Up and Running

And it only took me about three hours from start to finish.

The center is about 9' above the ground, just about a half wavelength, which is very good for a simple dipole.



And it's not super taught, but nice and straight. This is looking to the South along the wire and support ropes.


It's running in a line 30* West of North, so along a line 330*-to-150*, which is as "Broadside" as I could get it the the USA. It's up high enough to where it *should* be somewhat directional, but with the house and gutters being 1/2 wave away, and my 90' wire antenna located about 15' above it (they cross at about a 40* angle), the pattern is gonna be pretty wonky!

The North anchor point is a 5' section of mast clamped to the fence:



And the South anchor point is a screw eye into a tree. This way gives me lots of line on all three mounting points along the antenna so I can completely drop it to the ground for inspection and maintenance:


 The center point is hoisted through a "floating" pulley and tied down with the excess rope wrapped around a small halyard further down the tree. You can also see the coaxial cable "choke" about as close as I could get it to the feedpoint.

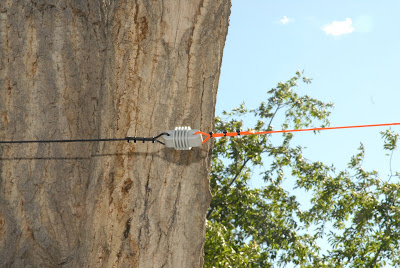

The wire and the support rope are belayed to the end insulators with several cable ties. I've been doing this for years, and never had one slip. Since I drop my little antenna farm yearly for inspection and maintenance, I'll catch the cable ties deteriorating before they break.....usually.



A view from the "backside":



I can't post a graph of the SWR because I can't get my antenna analyzer program to run on this PC, but running it manually shows the VSWR is less 1.3:1 @ 50MHz, dropping to about 1.1:1 @ 51MHz, 1.2:1 @ 52MHz, and peaks out at 1.9:1 @ 54MHz.

Whether it radiates well is anybody's guess at this time. I can hear the beacon down in Aurora, a about 60 miles away. He's running 50 Watts into a "Halo" antenna mounted at 30', so that definitely shows it's working to receive.

It's probably too late at night to get any propagation, but I just finished connecting my SignaLink, so I'll snoop around on some of the digital frequencies for signals. The digital modes are amazing because you can actually make solid contacts with stations at or slightly below the noise floor, which is running around "S5" here.
