Heathkit HM-2103 RF Wattmeter / Dummy Load - Part 1 -

This one item will probably run three parts. It's quite a simple item, and supposedly worked OK. Yep, it's another case of "Ran When Parked".

The first thing to do was pull the covers off as I wanted to check the workmanship, clean it thoroughly, and calibrate it.

OOOPS!

 The large cylindrical shape on the right is the 50 Ohm, 175 Watt load resistor. The angle bracket and white insulator attached to it are not in their correct positions. There should be a 6-32x1/4" machine screw coming up through the slot, and securing the insulator to the chassis. The insulator is molded/cast ceramic with the threads formed in to it. They're somewhat fragile, especially if overtightened, and can easily rip the threads right out of the ceramic. That's what happened here, and the whack that did it might also be responsible for the damage to the meter face, seen in the opening photo.

Bent the bracket up a bit, too.

I bent the bracket straight, pulled the load resistor and cleaned both contact faces on it, and then reassembled the stack using some "Jet Lube SS-30" copper-loaded anti-sieze compound. The SS-30 is about the best stuff I've found for use on RF connections like this, and sections of antenna tubing that telescope together, too.

This is the "Cold End" (Grounded Side) of the RF Load Resistor giving an idea of how the whole "Load Stack" goes together. There's a 10-32 threaded rod running through the resistor, clamping this end at ground potential.

This is where the resistor mounting plate bolts to the chassis. The instructions specified you sand the paint off the bottom corners of the plate, and also in the center of the plate, as you can see in the above picture.

And down at the other end of the resistor, the now straight bracket and insulator are attached to the chassis with some super strength 3M double sided tape.

 Pretty much back together and ready for calibration.

Ready for calibration, that is, after I do the one repair it needs, replacing the broken capacitor shown here.

If you look carefully, almost in the center of the picture, you'll see a round, yellowish item with what looks to be a chunk taken out of it's center. You'll also see what almost looks like a tiny golf putter sticking out towards the blown-out spot.

Yes, they were one at sometime past. When the Load Resistor got loose and wandered over to the other side of the case, it tore a small ceramic disc capacitor in half. That small capacitor is a 7.7pF, and since it's got one end connector to a source of RF Voltage that can exceed 220 Volts @ 1kW applied power, it should be rated 1kV.

And I don't have any suitable ones in stock. I could cobble something together to make it work, but I'd rather wait for this part to arrive. I'm going to go ahead and calibrate the meter, as that broken part is only selected if you use the "Calibration Using 40 Meters" procedure. Since I'll be calibrating it by measuring the applied RF voltage, I should wind up with a slightly more accurate calibration. Just for grins, though, I'll rerun the calibration using their "40 Meter" method, and see how it comes out compared to measuring the voltage.

Scrounging around the shop reveals no trace (YET!) of my nice, new, fancy RF Voltage probe. The circuit has been around "forever", going back to the 1930's, and these days the packaging's the thing, and this probe just plugs right in any of my nice, new, shiny, calibrated, Digital Multi Meters, and lets me directly read RF voltage up to 250MHz, and 50 Volts applied.

Well, I do have this Old Guy to fall back on.

 A pristine Heathkit RF Probe, Model PK-3, from the late 1960's. And what, pray tell, do I connect such a vintage device to so as to render it useful?

Why, another vintage Test Instrument, what else!

This one's a Heathkit (see a pattern here?) "Model V-6 Vacuum Tube Voltmeter", which was produced from 1952 to 1954. I got this one about six or seven years ago, and promptly rebuilt it. Both tubes were good, but it had a Selenium Rectifier in it, so I replaced that with a silicon diode and a small dropping resistor. I also built a small power supply for the Ohmmeter section, so no more leaky dry cells in the meter. Since I had other meters with current calibration certs, I used them along with some variable power supplies when I calibrated this one. It's pretty dusty from sitting around, so I'll clean it up tomorrow, and start setting up my "High-Power RF Generator" (My Elecraft K2 rig) so I can send some RF into this thing and get it calibrated. Once the Heath wattmeter is finished I'll open the case on the Yaesu meter, clean it, check it, and then calibrate it. It may or may not go on the block. I have three other accurate RF power meters I can use. If I had some vintage Yaesu gear of the same era I'd be tempted to keep it, but I don't.

SB-301 Rebuild Progress - Wrap-Up -

WWV on 15MHz with a few feet of wire. "S-9" signal, and the antenna is several feet below ground level.



 I'm just about to call this one a wrap. As with all the equipment like this I rebuild, I'll let it sit for a couple of days, and then go through it again before I put it back in the case. Sometimes my eye/brain combo needs a rest, and I might just pick up on something I missed the first few times through.

And speaking of things I missed......I forgot to clean the two switches on the front panel while I was busy scrubbing away at the three under the chassis. The "Function" switch was the first one to get cleaned, and then the "AGC" switch. The AGC (Automatic Gain Control) circuit is very important in the radio, as problems in the circuit can make the radio either "deaf" (no gain, or amplification), or overly sensitive (too much gain), which will cause distortion on strong signals. I'd noticed some oddness to the way the AGC circuit was operating, and after I cleaned the switch contacts, I started resoldering the connections to the switch. The first one I went to resolder popped off the terminal as soon as I touched the iron to it! This one wasn't a case of the lead just being stuck through the terminal and soldered. It was just resting on the terminal (like a "Lap Joint"), and was very poorly soldered to it. It looked like the kind of soldered connection that would get you flunked in a soldering class, and between the dirty contacts and bad soldering, was definitely causing problems in the AGC circuit, which now works "As Advertised".

The Function switch also turns on the Crystal Calibrator by grounding the cathode of the tube used in the circuit, and cleaning the contacts on that wafer resulted in the Crystal Calibrator turning on properly when switched into the "CAL" position.

Cleaning these two switches, and resoldering the connections to them, pretty much cleared up the last few issues I was having with the set behaving oddly, so I ran the calibration procedure again, which went smoothly. I was able to get the dial mechanical zero properly adjusted, and by tuning in WWV on 15MHz, I was able to "Zero Beat" the Crystal Calibrator to WWV, meaning the calibrator is calibrated.

The last thing I did was to run the alignment procedure again, but this time with the Main Tuning set for the middle of the band. Sometimes this allows you to pick up some sensitivity in the section of the band you most frequently operate, and it made a very slight (1/2 S-Unit) improvement.



So, I'll let this sit a day or two, and then move on to the SB-401 Transmitter. Before I tear into the transmitter, though, I'm going to go through these two items:

I have Dummy Loads, and I have Wattmeters. These two are self-contained, and one of those "Handy-To-Have" items. I know the Yaesu one on the left works. I suspect the Heathkit one on the right also works. However, I have no idea of the calibration status of either. Again, I suspect the Yeasu is pretty close, but I have no idea about the Heathkit unit. Since it's a Heathkit, purchased on eBay, it's most prudent to assume it DOESN'T work. The Heath unit requires a 9-Volt battery for the "Hi Temp" warning light, so I have to open it up for that, and I might as well check it and calibrate it. Since I have an accurate RF Probe, it's a simple matter to use one of my transmitters to generate the 100 Watts of RF, which corresponds to 70.7 Volts across the load resistor in these, and then set the calibration controls so the meter reads 100 Watts.

The Yaesu unit is fan-cooled and rated for 150 Watts continuous, and the Heathkit unit is not fan-cooled, but still rated for 175 Watts continuous duty, and 1000 Watts for 4 minutes.

After I've checked/calibrated these units I'll move on to the SB-401 transmitter, which I'm guessing needs as much work as the receiver did.....

SB-301 Rebuild Progress - Part 7 - Updated

 Spent yesterday cleaning all the switch contacts on all of the rotary switches in the receiver.

As an example, here's a set of contacts before cleaning:



And here's after cleaning:

 The contacts consist a silver-plated ring that rotates when the switch shaft is rotated, and a fixed contact that touches the rotating ring. I clean them with Tarn-X and a cotton swab, and then flush them with Isopropyl Alcohol to remove any remaining Tarn-X, and then treat them with DeoxIT, which helps prevent the tarnish from returning.

As you can see, I had a lot of contacts to clean on just the band switch, and there are contacts on both sides of several of the "wafers" making up each section.



And here's the mode switch after it's bath:

And along the way I found some more iffy soldered connections, so I wicked the old old solder off, bent the "excess lead length" around the terminal, and resoldered the connection.

The last thing to do was replace all the old hard, brittle RG-188 coaxial cables with new RG-316 Teflon insulated cables.

Each one of the ten such cables in the radio was unsoldered, removed, and used as a length guide for each new cable. The RG-188 cable is more flexible than the the RG-316, so in some cases I had to make the cable longer so I could snake it in, and in other cases I had to shorten it a bit.

I cleaned each terminal after I removed the old cable, wicking off the old solder and tinning the terminal with fresh solder. Then each end of the cable was soldered into place on the terminal, jack, or circuit board pad.

Tedious work, but I got into a rhythm of remove, fabricate, replace, and finally finished up around 0030. Some of the new cables may look a little "tight", but there's slack in them, it just doesn't show well in the picture.

So the test gear is warming up down in the workshop, and I'll start the alignment procedure again. If cleaning the switch contacts and replacing the ancient coax doesn't clear up the issues I found on Friday, I'll have to start poking around in there on a point-to-point basis, starting at the antenna connector, and moving along to the speaker.

This was sometimes referred to as "Hand-to-Hand Chassis Combat" by the Old Timers who taught me a lot of this stuff.

Update.....

It's ALIIIIIVE!!!!

I'll do a "wrap-up" post on this tomorrow, but it appears to be fully functional, and seems to meet specs for sensitivity. When I first started aligning it, it took 30 MILLIvolts to get an "S-6" signal. Now that it's been aligned, a 30 MICROvolt input gives me an "S-9" reading meaning the receiver is now 1000 times more sensitive than it was when I started. Dirty switches, poor soldering, degraded cable, lots of little things.

SB-301 Rebuild Progress - Part 6 -

 Well, I said Part 6 would either be "It's Done", or "Look What Else I Found".

Guess which?

In the process of doing the initial steps of the alignment, I noticed a few things that didn't seem right, like the signal from the Crystal Calibrator not moving the S-Meter, and not being very loud in the speaker. In fact, there didn't seem to be much audio at all. The next step of the alignment was to adjust the "Heterodyne Oscillator" coils for a certain voltage at a test point, and they were all off. Some need over half a turn of the "slug" in the coil, which is quite a bit.

I then injected at signal at the input of the 1st I.F. amplifier, and tuned the two "cans" in the I.F. section for maximum output. One of those was spot-on, but the first one needed about a quarter turn of the slug, not off very far.

The next step was to adjust all the coils in the RF Amplifier plate circuit for maximum output, and that proceeded normally.

Then I got to the Antenna coils, which are in the grid circuit (input) of the RF Amplifier, and say what? The adjustments had NO effect, on any of the bands. Seeing as this is the "Front End" of the radio, where both over the air signals and the Crystal Calibrator begin their journey to the speaker, a problem here will knock the sensitivity of the radio right down into the dirt, and not in a good way.

So, after studying the schematic and learning the signal path, I started looking for obvious problems. One thing I noticed right away was that moving some of the wiring around made the static/background noise increase, and moving some other parts of the wiring around resulted in large bursts of Really Crunchy Static that about blew the little speaker I was using apart.

 Hmmmm...think I found my "Missing Audio" problem, too.

The bandswitch is the long shaft, second from the one on the right, running from top-to-bottom in the picture below. It switches the Heterodyne Crystals, the RF Amplifier coils (both sets), and the Antenna coils, which are at the bottom of the picture. Yep, the area I need to redo is the most crowded section of it.

You can also see four black cables running horizontally to the right, and some more of the same type black cables running in a diagonal to the bottom. These are small shielded coaxial cables, Type RG-188, what was used Back In The Day for things like this.

Well, it's small, and being made of plastic, is prone to melt if improperly soldered. If the insulation melts enough, the center conductor can touch the shield, shorting out the cable, or worse, almost shorting out the cable. Then when the cable gets flexed or vibrated, you can have an intermittent short, which can be very frustrating to find.

In the picture below you can three of these cables "landing" at their designated connectors on the bottom left. They're small for 50 Ohm coax!

 All of the RG-188 cable will be replaced with Modern Era Type RG-316 Teflon coaxial cable. It's next to impossible to melt at normal soldering temperature, and it has slightly lower loss due to the center conductor and shield braid being Silver plated for increased conductivity. It's great stuff, and you can also use it for a rugged, easy-to-conceal microphone cable, too. All of the connections to the contacts on the switch will the solder removed, they'll be cleaned, and then resoldered.

One of the things I think I'm going to have to do is clean the switch contacts with Tarn-X as the DeoxIT compound I use isn't aggressive enough to get this heavy a tarnish off the silver plated switch contacts. I've used Tarn-X before, and it makes the switch parts look new.

After two days of correcting "iffy" solder joints, I'm just going to take off and nuke that corner of the chassis from orbit, and then rebuild it.

It's the only way to be sure.....

SB-301 Rebuild Progress - Part 5 -

 I spent last night removing the old two-wire AC Input socket, and making way for the new three-wire socket.

First, remove the old. This an "inside view" after I unsoldered and removed the old socket.

Then using my good friends Caliper, Nibbler, and the two File brothers, I set to work enlarging the opening from .500" x .875" to 1.2" x .875".

This is NOT something for the faint-of-heart or the mechanically inept! Taking tools in hand and removing chunks of metal from a pristine chassis like this, and not screwing it up, takes some patience and skill. As my Dad taught me, "Measure Twice, Cut Once, Or Buy A New Board!", and I've always taken that advice to heart. So, I measured about ten times, marked it out with pencil several times, held the part up to the markings, made some adjustments, took a deep breath, and cut metal.

I roughed it out with my good old Adel Nibber, and then had the File brothers attack the problem, smoothing things out the rest of the way to my pencil marks.

Yeah, I gotta be more careful to use the guidelines in the camera viewfinder to ensure the pix don't look tipped.

But, it fit!

And there was plenty of lead length on the original wires to restore the AC connections.

Drill two holes, and add hardware to finish:

One thing that's always bothered me was Heathkit's wide use of RCA Phono jacks for RF connectors. Looking at the pix of the back panel reveals a forest of them, and for RF use up to 10MHz or so they're "OK", but I always thought using them for the antenna connection was pretty cheep.

It turns out that if you remove the RCA jack, the punched hole is almost a perfect fit for a BNC connector, a "proper" RF connector.

So I swapped it out....

And no, "BNC" does NOT stand for "British Naval Connector" or any other such nonsense. It means "Bayonet Neil-Councilman", for the type of locking mechanism it uses, and the two guys that invented it.

So at this point the cleaning and replacing is done, along with resoldering several dozen connections, and cleaning up some General Workmanship Issues that would have gotten you an "F" grade in my soldering classes.

I've cleaned the workbench again, and shifted from "Repair" to "Alignment" mode, and my test gear's been warming up for about the last hour, so it's time to head back down and began the alignment process.

"Part 6" of this will either be "It's Finished", or "Awww RATS, Look What Else I found".

Stay tuned.....

SB-301 Rebuild Progress - Part 4 -

 So, I spent some time making sure all the dial tracking issues were solved, and then put the front panel back on the radio, taking care to align the panel as specified in the manual, as if you don't do it correctly, the dial can bind up, and things can wear out. Then I cleaned the knobs and dial bezel, polished them a bit with some "NOVUS #1" cleaner/polish, and reinstalled them.

Then I flipped the chassis over, and began inspecting all the soldered connections, and checking for "Workmanship Issues" like unclipped wires hanging through terminals, like this one on the center terminal.

And this poorly terminated coaxial cable. The ground braid goes to the third terminal from the right, and you can see all the individual strands. The soldering on the capacitor on the right end of the terminal strip wasn't too neat, so I re-did those, too.

And you can see some excess lead length through the terminals on this wafer of the VHF Converter Select switch. This, too, was corrected.

In all cases, the solder was wicked off the connection using "Solder Wick", the excess lead was wrapped around the terminal like it should have been when first assembled, and then resoldered. This is more a reliability issue than a functional one, as the connections were soldered acceptable well, but "Accepted Practice" states you wrap the lead around the terminal to make a solid mechanical connection, and then solder it. Solder has very little strength; it's just there to enhance the conductivity of the mechanical connection, and to "seal" the joint a bit. Oh, sure, we've all just "tacked" connections together to bypass a bad part, but if the assembly that tack joint is in gets  subjected to vibration or rough handling, it might very well fail and pop loose. If the device just sits on a desk it's entire life it might work for 25 years, but it's not the right way to build things.

Tomorrow's activity will be to start the process of changing the 120VAC Input Connector from an old "Two Pin" style, to a modern three pin style that uses a three-wire line cord to ground the chassis of the radio.

This will require some metal work, as the mounting holes are further apart on the new connector, and the hole for it is wider and taller. The positioning of the new connector will be such that the lettering "120 VAC" will remain, but the "INPUT" label will be gone. Small price to pay to have an easily replaceable power cord, as the two-pin style cords are now considered "Vintage" or "Antique", and the prices have shot up.

I'm also going to change out the antenna connector, from an "RCA Phono" style to a BNC female.

I did the "Initial Tests" in the manual tonight, confirming I didn't make any mistakes rewiring the power supply. After I change out the power connector, I'll be ready to begin the alignment procedure.





Heatkit SB-301 Rebuild Progress - Part 3 -

 As I was doing some clean-up work and just "spinning the knobs", I noticed that the main tuning knob seemed to be binding up over a segment of it's rotation, and was hard to turn at the upper end of the dial. Peeking/poking/peering into the innards as I rotated the knob, I noticed something appeared to be wobbly or misaligned, so I took a deep breath and began the disassembly of the front panel.

Off with the knobs!

Then remove the mounting hardware from the controls, and wiggly-jiggly slide the front panel assembly off the shafts.

The first thing I noticed was the clear plate with the fiducial marker on it was binding on something, so I pulled the dial assembly off the tuning shaft to get a closer look.

 I took off the retaining ring and inspected the parts.

Definitely binding on something from the circular scratch marks.

Turns out the shiny metal ring that was attached to the dial itself had popped loose. It was pressed on to the dial, and had little tabs that were bent over to hold it in place. Over the years, one of the tabs loosened up, and allowed the metal ring to pop loose and move away from the dial by a bit more than the available clearance between the parts, and causing the two parts to rub together. I pushed the metal ring back into the dial, and rebent all the tabs, and now it fits flush again on the dial.

The metal ring is part of the drive assembly, and uses a "Pinch Roller" on a shaft to turn the dial. The Main Tuning knob goes on the shaft, which rotates the pinch roller, turning the numbered dial, which is attached to the tuning shaft of the LMO, the "Linear Master Oscillator", and tunes the radio.

All back together and back on the radio. The original lubricant was all dried up, so I cleaned it off and put a bit of silicone grease on it, a very good lube to use in a plastic-on-metal situation.

And I cleaned and polished the various plastic bits.

Now for the fun part, and a main reason these radios have a love/hate following.

The dial itself is marked 0-99, corresponding to 100kHz of tuning range. The LMO has five turns of range, corresponding to the 500kHz total tuning range of the LMO.

So, have I turned the dial twice? Four times? In order to keep track of the total turns of the dial, Heath molded-in a spiral pattern into the back of the dial, which you can see through the clear plastic center of the dial. The spiral is engaged by a little nylon pin on an arm with a slot in it. You can see the arm sticking out from behind the dial, between the "0" and "95" numbers on the dial. As the dial is turned, the nylon pin follows the spiral, and moves the arm from left to right. The slot in the arm engages a pin on the back of a sliding dial pointer, which moves from 0 to 5, indicated which 100kHz section you're tuned to.

Hard to explain without better pix or a drawing, but here's the "Hundreds" marker back in place.

The love/hate part comes with getting these parts to all play nice, so the marks all line up and track properly. It wouldn't look good if the dial was on "Zero", but the sliding hundreds marker indicated "250" instead of "200", so Heath built-in some adjustments.

The metal arm is attached to the chassis with two 6-32 screws, nuts and lockwashers. The chassis holes are slotted horizontally, while the holes in the arm assembly has them slotted vertically, allowing a two-axis freedom of movement. Getting the arm screwed down to the chassis in the correct left/right, up/down position so that the hundreds pointer agrees with the dial takes a LOT of patience, but once you've done it (a few times.....) you get the hang of it, kinda like sighting in a new scope. A little to the left, a little bit up, oops, now the zero is off so reset that, spin the knob over it's whole rotation, and rats, now the "5" is off again, and on and on. Eventually you get it to track, where the "Zero" on the dial and the major divisions of the "Hundreds" slider all match up and follow each other over the entire range, like this:

 Yeah, it's a tiny bit off on the "5", but I'm going to live with it. Took me several hours to get it this good....

And there's some slop in the dial that I don't remember from the SB-310 Shortwave version of this I restored a few years ago, so I'll look into that, but short of replacing the plastic parts in the dial mechanism, I don't think there's much I can do about it. Perhaps if I slide the dial a bit further in on the shaft, which would engage the nylon follower pin a bit deeper in the spiral groove, it might help.

And the haze on the clear hundreds marker? Well, it's on the inside of the plastic piece, and if I tried to polish it off I'm afraid the numbers would disappear, too. I've already tried gently cleaning it with plain water, and then some highly diluted soapy water, and it won't budge. I'd try some Windex, or my "Special Sauce" cleaner, but some of the Heathkit lettering is extremely easy to damage, and replacement parts only come from "Parts Radios". Fortunately, I found one on ePay, so I can swap out the clear part when it gets here.

Heathkit SB-310 Rebuild Progress - Part 2 -

 After spending about 30 minutes reading the manual for the tube tester, it turns out I wasn't using it correctly. I didn't damage any tubes I've previously tested, but the measurements are meaningless.

Anywhoo.....I found one tube that gave a "Merit" reading of 80%, which is the lower limit of the "Good" scale on the tester's meter. I pulled one of my new tubes from stock, and it read over 120%, as did several others from my stash. It's a 6AU6 "Sharp Cutoff Pentode", a very common tube, and there are three of them in the radio. One is used for the 100kHz crystal calibrator, a frequency reference used to calibrate the main tuning dial, and the other two are used as mixers, a type of frequency converting circuit.

With that out of the way, I pulled all the knobs off, as some of the panel bushings were loose, allowing the shaft the knob mounts on to be loose and wobbly in the panel. I also cleaned any old lubricant out, and added a drop of synthetic oil to smooth the action. I then cleaned the old lube from the detent mechanism of the rotary switches, and relubed them with some Mobil1 red synthetic grease. Then on to cleaning the potentiometers and rotary switch contacts with some DeoxIT cleaner. All the switches and controls now turn much smoother than they did before, and no more wobbly knobs!

And I tightened all the hardware on the chassis, some of which was a bit loose. Since some of these are used as tie-points to ground, retightening the hardware helps ensure I don't have any poor ground connections, which can cause noise, oscillations, and other gremlins.

Replacing the electrolytic capacitors on this radio is fairly easy. There are 4 lead-mounted capacitors under the chassis, and one large can-type mounted through the chassis.

Original parts. The three pinkish cylinders are capacitors, as it the smaller black cylinder.

Replacement parts installed.

The big can cap mounted from the topside has four terminals, and four locking tabs, and most are used as tie-points and component mounting.

It's a bit crowded in there!

The three black "bullets" with yellow lettering are the original silicon rectifiers that I'll be replacing with more reliable "modern" units. These are rated at 500V and 750mA, while the new ones are rated at 1000V and 1 Amp. They also have much better "surge" ratings, which means they're stressed less at a cold turn-on, when the capacitors draw maximum current.

Out with the old, and in with the new. You can see one of the new rectifiers installed just above the largest brown cylinder with the color stripes. It's the small, black cylinder with a silver stripe on the right end.

 I'll do some clean-up work tonight to get the solder flux bits and other loose trash out of there before I put the components back in. I'll also spend some time checking the soldering, as I found a couple of almost-cold (dull and grainy looking) connections. I also don't care for some of the workmanship by the original builder. He left some component leads longer than I would have, and a lot of them are just stuck through the lug and soldered. Proper technique should be to bend the lead around the lug before soldering, ensuring a solid mechanical connection. In some cases there was enough lead length left to do a partial wrap after I removed the solder, and in other cases there wasn't. Worst case was the lead had at least enough to make a 90* bend, which is better than just stuck-through-the-hole, but still not correct by the accepted standards in use.

At least they left a lot of length on the leads that were just stuck-though-the-hole, so once I remove the solder I can bend the excess length around the terminal or slot that it goes through, and then resolder.

This unit isn't as bad as some I've seen that made me wonder how it ever worked in the first place, but then it's not nearly as nice as others I have. It's a gamble you take whenever you buy a kit built by someone else. Sometimes the original kit builder did a beautiful job, and sometimes they didn't.

I'd give this one a B-.

What's On The Bench: SB-301 HF Receiver - Part 1 -

 Having gotten the downstairs Electronics Bench cleaned up, I decided to get cranked up again and get some things done after my usual mid-winter slump.

I was going to start on my Drake R4-B after spending several hours digging out my stash of Drake parts, but since I'm a bit rusty, I figured it would be better for all concerned if I started on the Heathkit SB-301 first.

Sorry for the crummy pix. Looks like my Indoor Photography skillz have tarnished a bit, too.

 Why this one? Well, a year or so before we moved here I rebuilt it's stablemate, the SB-310 Shortwave version of this, which is better than 90% identical to this one. Same tubes, same resistors and capacitors, same alignment procedure, etc. It differs only in the Heterodyne Crystals used to determine it's frequency coverage.

In other words, I've been here, and done this, so it should be easy-peasy.

And I've got out my trusty EICO 667 "Dynamic Conductance" tube tester:

 With both manuals:

Yes, I know how to "use" my tube tester, but it's way overdue that I sit down with the manuals and get to understand the tube tester. A quick check through the charts and a look at the sockets on it confirms that it will test any tube I currently use, or have in stock. I figured it would test the 6146 Power Amplifier tubes in the matching transmitter to this radio, but didn't really know until I looked at the tube listings. And a check of the front panel shows it will fit the Compactron tubes I use, and also Octal and Loctal tubes, which I don't.

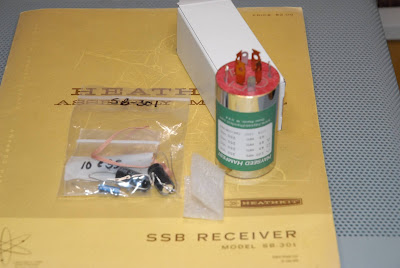

And we have all the required replacement parts (less tubes) on hand:

If I need any tubes, I should have them, as I have two sets of "spares" for the SB-310. My criteria has been to reject tubes that read less than 85% on the tube tester. Is this valid? It's just something I've always done, but one of the reasons I want to RTFM for the tube tester. It has quite a good "How It Works" section, explaining how each measurement it's capable of making is made, and what the implications of the measurement are.

So next up is to pull the tubes and read the tube tester manual while I go through them. After that I'll pull the chassis from the cabinet and clean it, and start doing things like cleaning the controls and switches, checking how well it's put together, tightening all the hardware, and doing some other basic checks to bring this back to life.

Cinnamon Rolls, V.1 Alpha Release

 Decided to try my hand at a batch of cinnamon rolls, something I've been threatening to do for a year or so. Found an easy recipe over at the King Arthur Flower site, and set about gathering the ingredients. Almost said "chemicals" there, but hey, baking is Applied Chemistry, isn't it?

Mixed everything up, and let the dough rise.

Mistake #1 - didn't turn out the dough and grease the bowl before letting it rise in said bowl. Wasn't a huge mistake, but made it "interesting" to get it all out so I could then roll it out and butter it up.

Then cover it with brown sugar and cinnamon powder.

Getting it rolled up, and sliced into approximately equal sections, was a Charlie Foxtrot, but Sweet Little Wife helped me out, and we eventually got to here after allowing the rolls to rise about 45 minutes.

While they were rising again, I mixed up the ingredients for the cream-cheese icing.

Mistake #2 - grabbed the wrong measuring spoon, and added twice the amount of vanilla that was called for. OOOPS!

After baking for what was deemed an appropriate amount of time, at an appropriate temperature as adjusted for the altitude, we we rewarded with these.



Mistake #3 - picked the wrong combination of time and temperature. I made adjustments to the time and temp based on published guidelines for adjusting your recipes to a 5000' altitude, and my bread baking, which confirmed the guidelines.

In short, you increase the temperature and decrease the time to avoid drying out your bread.

Guess what? This ain't bread. It's pastry dough, and bakes differently than just a straight yeast bread does. The extra butter and eggs change the chemicals enough to make the reaction go in an unexpected way. In this case, while the outside 2/3 of the roll is completely cooked, the inside 1/3 "core" of the roll isn't fully cooked. It never developed into the nice, light, almost flaky crust a Good Cinnamon Roll has through-and-through. They're not raw, just not fully cooked, and a bit doughy. They taste pretty good otherwise, although the icing has a bit too much vanilla for my taste.

Next time I'll make sure to use the recommended 400* oven, and let the time run the full 15 minutes. We took the pan out once to inspect the bottom, and it looked like the sugar was caramelizing nicely, but we just flat took it out too early, based on the rolls looking "Golden Brown". The higher temp got the outsides done just fine, but the shorter time didn't allow the heat to fully penetrate the denser dough and completely cook it.
