Well, It Kinda-Sorta Buffed Out....

 Used some hardwood blocks, a beefy C-Clamp, and my bazillion degree heat gun, to get this straightened out a bit.


Clamped it up:




Got it HOT, and squeezed it back:

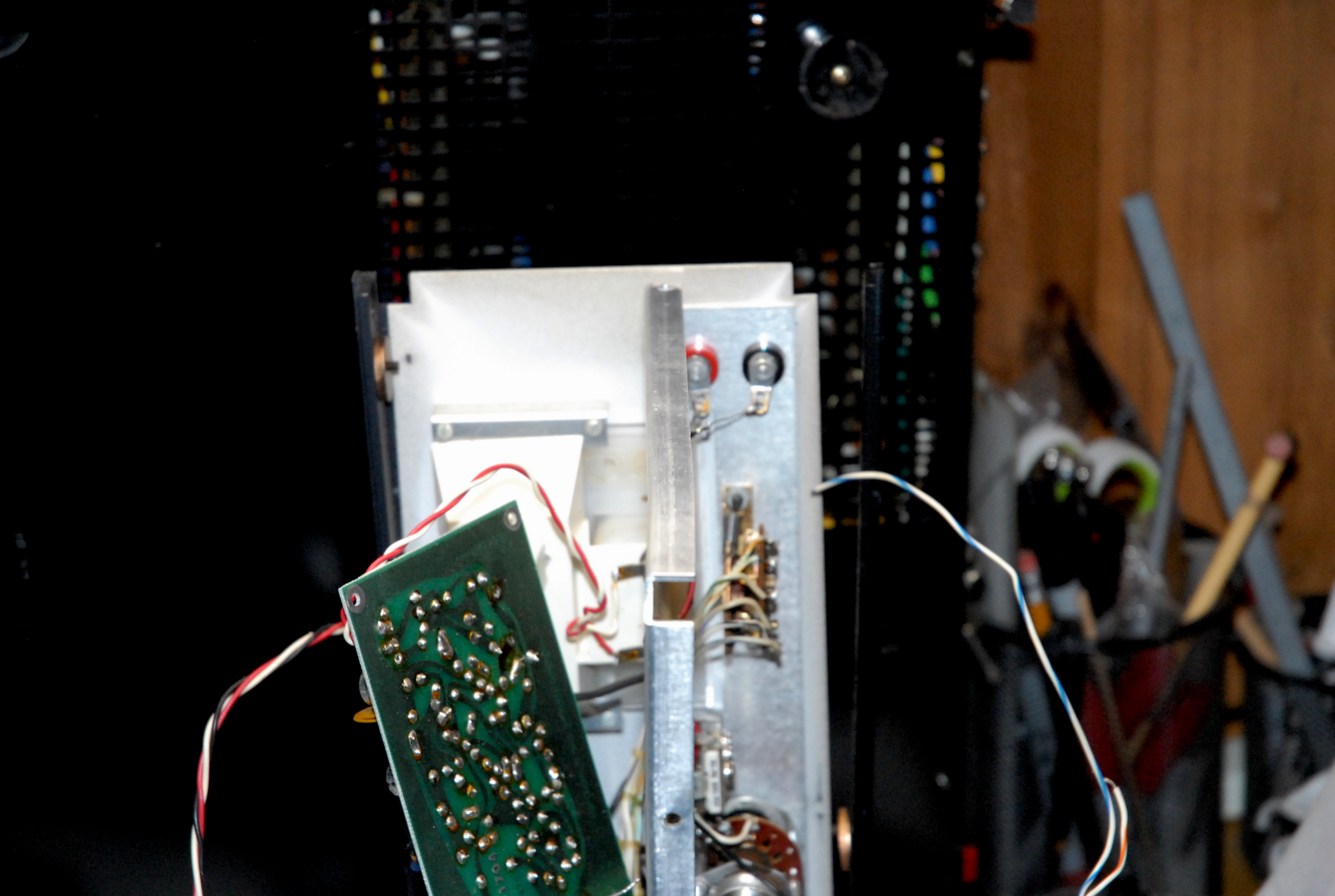

 And it came out pretty straight:


Did a bit more tweaking, and got the small kinks out in the above picture. Also used the clamps and wood blocks on the bent rack handle, but without the heat. And yes, this one's going "down to the frame" also.


 ALL the hardware in it was loose, and with the front panel pulled for scrubbing, it makes it a lot easier to inspect and clean the switches.

This unit is back on hold, as the parts for the other analyzer arrived, and now it's back on the bench getting things replaced so I can attempt to sort out the problem(s) with the metering section. Both of these devices use the metering circuit as an integral part of the distortion measuring circuitry, so unless the metering circuit works properly, they're just door stops.
