Found this on YouTube while I was searching for something else, and thought I'd repost it here. This is an abbreviated video tour of the one I took a few months ago, and it's worth the 9 minutes of your time.
Hang on, I'm still sorting through the pix of the Superstructure Tour, and I'll get those posted later today.
All of the tour guides and other people you'll see wearing Iowa shirst in the video are people I work with on the ship, and a nicer bunch of men and women would be harder to find. We're all there because we appreciate having this grand ship available to us and the public, and we treat her like the fine ship she is.
Friday, January 30, 2015
Wednesday, January 28, 2015
Battleship Iowa Superstructure and CEC Tour
It wasn't a very long tour, but hoo-boy, did we go up some steep narrow ladders!
Normally, I'm down on the "01" level, which is the main deck, where the radio room is located, so pardon me if I get the deck numbers all mixed up, as these are areas currently not on the tour, and are generally OFF LIMITS unless you have areason to be there.
We went up a couple of ladders, and were at one of the longest passageways on the ship, about 175' long:
Forward, to the end of this passageway, we found a couple of doors, the first with some more artwork by the talented Blair Denning:
The 'gator appears to be holding a sextant, but I don't know the significance of it.
The next door was a "Guest Cabin", and I'm told Admiral Kincaid used it for his at sea quarters:
Finally, we reached the hatch to the Combat Engagement Center (CEC), referred to as "STRIKE" by the people that worked there. I'm not sure of the significance of the curved metal track for the top of the hatch, unless it was just to keep the hatch from swinging open too far:
This is an armored area, as you can see by the thickness of the hatch. I believe it has 3" of armor, not a lot compared to the 17.5" of the Armored Conning Tower!
A lot of history was lost in this area when the Iowa was modernized in the 1980's. Several cabins and staterooms were gutted with no regard to their historical value, but the Iowa was still an active ship at the time, needed massive upgrades, and historical value was not on the list of important things.
This is the stenciling on the hatch leading to the CEC, indicateing it's on the "02" level:
This is the desk the Tactical Affairs Officer (TAO) used. As you can see, it doesn't have much left on it besides the "Red Phones" and some secure voice equipment:
The grey metal frames past the desk are actually holding some clear plastic, and were used a Threat Display Boards, so the crew could keep track of any bad guys determined to be hostile. Off to the right, laying on its side, you can see one of the "Battle Seats" that we've managed to acquire to replace missing equipment in the room.
A LOT of the equipment was stripped from this space, and we're trying locate replacements to get the room is presentable shape to include on the tour route.
I think this was one of the positions the Harpoon missiles were controlled from:
This is one of the radar displays used. Notice it has a Red Phone next to it, along with a rectangular "black box":
There are numerous black boxes of this type, located at or near radar displays, and I was told these were used for the Identification Friend or Foe (IFF) function. I'm sure if I'm wrong I'll be corrected here, and I appreciate it!
Here's two radar displays we were able to acquire from the aircraft carrier USS Ranger, CV-61, before she was released for scrapping. The Ranger also "donated" several of the battle seats seen laying on the floor here. Note the IFF box to the left of the console. There's another IFF box to the right of the rightmost console:
Here's a wider view of this position:
Here's a view to the left od the TAO station. The round dials are repeaters for things like the ship's heading, speed, and weather:
This is a "Navigation Switchboard" for some purpose I don't know, and what appears to be a bank of reel-to-reel tape recorders:
Here's a view to the extreme left of the TAO station, showing more empty equipment positions:
And here's a couple of close-ups of the desk in the left of the above picture:
An "interesting" placard on a desk:
And off to the side of the CEC is an area I'm told was "The Spook Room", now used as a storage area:
Another stripped area, function unknown by myself:
And a lonely looking "Data Terminal Set", function also unknown by myself:
ASnd the backside of the door we came in:
I've got more pix of the inside of the CEC, but we covered so much material while we were in here, I really can't remember what I took pix of!
I've been told that I can make a request to be escorted back up here, and snap away to my heart's content, so I'll have to get one of the "radar guys" we have to take me up there, as they know a lot more about this area than I do. As long as you have permission, and tell Security where you're going, it's generally not a problem to get into some of these areas to look around and take pictures.
There's also a Combat Information Center (CIC) aboard the Iowa, but I'm told that was used mostly before her retrofits and upgrades, and served a secondary function to the CEC, where the ship was "fought from".
And yep, we're missing a TON (or three...) of equipment. The Missouri has a pretty complete CEC, and it's on their tour route, but we have quite a ways to go before we get there.
The Iowa, though, has an almost complete Radio Room and Transmitter Room, so while they have stuff we'd like, we have a lot of stuff they (and the New Jersey and the Wisconsin) would like!
I'll pick this up tomorrow with the "superstructure" part of tour, and visit to "CONN2".
Normally, I'm down on the "01" level, which is the main deck, where the radio room is located, so pardon me if I get the deck numbers all mixed up, as these are areas currently not on the tour, and are generally OFF LIMITS unless you have areason to be there.
We went up a couple of ladders, and were at one of the longest passageways on the ship, about 175' long:
Forward, to the end of this passageway, we found a couple of doors, the first with some more artwork by the talented Blair Denning:
The 'gator appears to be holding a sextant, but I don't know the significance of it.
The next door was a "Guest Cabin", and I'm told Admiral Kincaid used it for his at sea quarters:
Finally, we reached the hatch to the Combat Engagement Center (CEC), referred to as "STRIKE" by the people that worked there. I'm not sure of the significance of the curved metal track for the top of the hatch, unless it was just to keep the hatch from swinging open too far:
This is an armored area, as you can see by the thickness of the hatch. I believe it has 3" of armor, not a lot compared to the 17.5" of the Armored Conning Tower!
A lot of history was lost in this area when the Iowa was modernized in the 1980's. Several cabins and staterooms were gutted with no regard to their historical value, but the Iowa was still an active ship at the time, needed massive upgrades, and historical value was not on the list of important things.
This is the stenciling on the hatch leading to the CEC, indicateing it's on the "02" level:
This is the desk the Tactical Affairs Officer (TAO) used. As you can see, it doesn't have much left on it besides the "Red Phones" and some secure voice equipment:
The grey metal frames past the desk are actually holding some clear plastic, and were used a Threat Display Boards, so the crew could keep track of any bad guys determined to be hostile. Off to the right, laying on its side, you can see one of the "Battle Seats" that we've managed to acquire to replace missing equipment in the room.
A LOT of the equipment was stripped from this space, and we're trying locate replacements to get the room is presentable shape to include on the tour route.
I think this was one of the positions the Harpoon missiles were controlled from:
This is one of the radar displays used. Notice it has a Red Phone next to it, along with a rectangular "black box":
There are numerous black boxes of this type, located at or near radar displays, and I was told these were used for the Identification Friend or Foe (IFF) function. I'm sure if I'm wrong I'll be corrected here, and I appreciate it!
Here's two radar displays we were able to acquire from the aircraft carrier USS Ranger, CV-61, before she was released for scrapping. The Ranger also "donated" several of the battle seats seen laying on the floor here. Note the IFF box to the left of the console. There's another IFF box to the right of the rightmost console:
Here's a wider view of this position:
Here's a view to the left od the TAO station. The round dials are repeaters for things like the ship's heading, speed, and weather:
This is a "Navigation Switchboard" for some purpose I don't know, and what appears to be a bank of reel-to-reel tape recorders:
Here's a view to the extreme left of the TAO station, showing more empty equipment positions:
And here's a couple of close-ups of the desk in the left of the above picture:
An "interesting" placard on a desk:
And off to the side of the CEC is an area I'm told was "The Spook Room", now used as a storage area:
Another stripped area, function unknown by myself:
And a lonely looking "Data Terminal Set", function also unknown by myself:
ASnd the backside of the door we came in:
I've got more pix of the inside of the CEC, but we covered so much material while we were in here, I really can't remember what I took pix of!
I've been told that I can make a request to be escorted back up here, and snap away to my heart's content, so I'll have to get one of the "radar guys" we have to take me up there, as they know a lot more about this area than I do. As long as you have permission, and tell Security where you're going, it's generally not a problem to get into some of these areas to look around and take pictures.
There's also a Combat Information Center (CIC) aboard the Iowa, but I'm told that was used mostly before her retrofits and upgrades, and served a secondary function to the CEC, where the ship was "fought from".
And yep, we're missing a TON (or three...) of equipment. The Missouri has a pretty complete CEC, and it's on their tour route, but we have quite a ways to go before we get there.
The Iowa, though, has an almost complete Radio Room and Transmitter Room, so while they have stuff we'd like, we have a lot of stuff they (and the New Jersey and the Wisconsin) would like!
I'll pick this up tomorrow with the "superstructure" part of tour, and visit to "CONN2".
Tuesday, January 27, 2015
Too late to post tonight about superstructure tour
I'm beat.
We went all the way up to the "O-8" level, which involved going up a lot of narrow, steep ladders.
Got to see the plot room, the CEC (Combat Engagement Center), some rooms with radar gear in them, "CONN2", and the ship's whistle.
Finally finished recapping the "A5A1" card from the URR-74 receiver that's been giving us fits.
I'll post the pix I took today after I get back from a radio event we're doing tomorrow in rememberence of the cease fire that "ended" our involvement in Viet Nam.
'Night all!
We went all the way up to the "O-8" level, which involved going up a lot of narrow, steep ladders.
Got to see the plot room, the CEC (Combat Engagement Center), some rooms with radar gear in them, "CONN2", and the ship's whistle.
Finally finished recapping the "A5A1" card from the URR-74 receiver that's been giving us fits.
I'll post the pix I took today after I get back from a radio event we're doing tomorrow in rememberence of the cease fire that "ended" our involvement in Viet Nam.
'Night all!
Monday, January 19, 2015
Superstructure Tour Tomorrow on the Iowa, and Continuing Antenna Work
And yes, I'll be taking my trusty old Nikon D200.
Not sure what this tour encompasses, as I don't know anybody who's taken it, but I'll find out, and my little audience here will find out, too.
I've been busy making some jumper cables to connect the receiver coupler banks together, and replacing all the tantalum capacitors on the "A5" card for the URR-74 receiver.
We have two banks of antenna couplers of the CU-1799/CU-1801/SRA series. Each bank is split into two sections, giving us four inputs to use. Each of the couplers acts like an amplified, tunable preselector, and gives isolation to the receivers they feed.
(Photo courtesy of http://www.virhistory.com/navy/ships/bb61.htm one of our friends and mentors)
The patch panel at the top allows various couplers to be patched to various receivers.
Since we're missing one of the "Trussed Monopole" (12~30MHz) antennas, as well as the "Twin Fan" (100kHz~12Mhz, approx) antenna, we're going to daisy-chain the coupler groups together.
Each group has "Input 1", "Output 1", and "Input 2", "Output 2" jacks on the top of the rack. Typically, the "Input" jacks connected to an antenna, and the "Output" jack went to a dummy load.
What we'll be doing with the jumpers is to connect "Output 1" to "Input 2", and then "Output 2" of the first group will go to "Input 1" of the second group, and so on.
"Output 2" of the last group will go to the dummy load.
The bummer about this is that the coaxial cable jacks on the top of the rack are "Type-C" connectors, about the same size as a "Type-N", but with a bayonet mechanism, kinda-sorta like a giant sized BNC connector. When I went connector shopping I found that the connectors are readily available, but cost about anywhere from $45 to $85 EACH, depending on who you get them from.
After I picked myself up off the floor, I was able to find some Type-C to Type-N adapters for about $8, so I'll be using Type-N connectors on the cables I'm making along with the adapters that arrived Saturday morning.
This should (hopefully) allow us to feed all the 1051 receivers, and run a "trunk line patch" over the the URR-74 receivers, and connect them up to one of the antennas we have available to use.
We also have several other HF antennas we could use for receiving, but we need to find where the coax connected to the antenna(s) goes to.
We have the "Twin Whip" antennas on the front of the bridge:
A vertical antenna on the starboard side, just aft of the bridge:
And a pair of antennas that we call the "Goal Post Antenna", just aft of the forward stack:
The Goal Post antenna has a large Heliax coax running from the coupler box to somewhere:
BUT, the whips aren't connected to the coupler box:
So, one of us (probably me) will have to get a ladder out on deck and climb up to see what the cable tag on the Heliax cable has stamped on it.
Considering the size of the coax going to the coupler box, it's plausible to think this was a transmitting antenna, but it would work equally well for receiving.
Our friends over at the U.S. Navy Radio Communications website have been a tremendous help getting the antennas identified, and sending us documentation on them, but it's up to us to play "Follow That Coax!", and figure out where the cables wind up. We're pretty sure they go to either the Radio Room where most of our activities take place, or to the Transmitter Room, three decks down off Broadway.
Not sure what this tour encompasses, as I don't know anybody who's taken it, but I'll find out, and my little audience here will find out, too.
I've been busy making some jumper cables to connect the receiver coupler banks together, and replacing all the tantalum capacitors on the "A5" card for the URR-74 receiver.
We have two banks of antenna couplers of the CU-1799/CU-1801/SRA series. Each bank is split into two sections, giving us four inputs to use. Each of the couplers acts like an amplified, tunable preselector, and gives isolation to the receivers they feed.
The patch panel at the top allows various couplers to be patched to various receivers.
Since we're missing one of the "Trussed Monopole" (12~30MHz) antennas, as well as the "Twin Fan" (100kHz~12Mhz, approx) antenna, we're going to daisy-chain the coupler groups together.
Each group has "Input 1", "Output 1", and "Input 2", "Output 2" jacks on the top of the rack. Typically, the "Input" jacks connected to an antenna, and the "Output" jack went to a dummy load.
What we'll be doing with the jumpers is to connect "Output 1" to "Input 2", and then "Output 2" of the first group will go to "Input 1" of the second group, and so on.
"Output 2" of the last group will go to the dummy load.
The bummer about this is that the coaxial cable jacks on the top of the rack are "Type-C" connectors, about the same size as a "Type-N", but with a bayonet mechanism, kinda-sorta like a giant sized BNC connector. When I went connector shopping I found that the connectors are readily available, but cost about anywhere from $45 to $85 EACH, depending on who you get them from.
After I picked myself up off the floor, I was able to find some Type-C to Type-N adapters for about $8, so I'll be using Type-N connectors on the cables I'm making along with the adapters that arrived Saturday morning.
This should (hopefully) allow us to feed all the 1051 receivers, and run a "trunk line patch" over the the URR-74 receivers, and connect them up to one of the antennas we have available to use.
We also have several other HF antennas we could use for receiving, but we need to find where the coax connected to the antenna(s) goes to.
We have the "Twin Whip" antennas on the front of the bridge:
A vertical antenna on the starboard side, just aft of the bridge:
And a pair of antennas that we call the "Goal Post Antenna", just aft of the forward stack:
The Goal Post antenna has a large Heliax coax running from the coupler box to somewhere:
BUT, the whips aren't connected to the coupler box:
So, one of us (probably me) will have to get a ladder out on deck and climb up to see what the cable tag on the Heliax cable has stamped on it.
Considering the size of the coax going to the coupler box, it's plausible to think this was a transmitting antenna, but it would work equally well for receiving.
Our friends over at the U.S. Navy Radio Communications website have been a tremendous help getting the antennas identified, and sending us documentation on them, but it's up to us to play "Follow That Coax!", and figure out where the cables wind up. We're pretty sure they go to either the Radio Room where most of our activities take place, or to the Transmitter Room, three decks down off Broadway.
Wednesday, January 14, 2015
For All My Frozen Friends in Other Parts of the Country
Just a little something to warm you up......
Sunday, January 11, 2015
Portside Aft Steering Gear Compartment on the Battleship Iowa
Some of the tour today covered things I'd already seen and wrote about, like the Barbershop, Brig, and Laundry areas, so I won't go over them again.
We started in the Crew's Mess, as the passageway we would take was off the Museum Store.
While the steering gear compartment is armored, it's outside of the "Armored Citadel", which runs from just forward of the #1 turret, to just aft of the #3 turret.
The blue painted area shown below is the top of the aft end of the armor.
As you can see, it's really thick:
After we went down one deck, below this first armored deck, we passed by a hatch leading down to the 4th deck. The stainless steel door to the right leads in to one of the "reefer" areas where refrigerated foods were stored. If you look carefuly at the ladder going down, you'll see some "flaps" mounted on the sides of it. When these were moved to cover the steps, it made them into a ramp so boxes could be easily slid up and down the ladder.
Pretty clever:
Here's another ladder going down to the refer area, and still another hatch under that, with grating on the bottom:
Now, the good stuff!
Getting closer:
One more armored hatch to go through, and we're there:
This is the control panel for running all the pumps and servos, and a place-of-last-resort to steer the ship from.
Notice the two bronze mounts in the picture. There are where the handwheels were located to manually (with hydraulic assist, of course) steer the ship.
The closer of the two got cut off in the picture, but in the one further away, at the bottom of the bronze mount, you can see a stub shaft with a white tag hanging on it. These were the stubs the wheels attached to.
The wheels were removed for some reason, and are "MIA" for the time being:
How do you know you're on the Port side? Well, besides the yellow painted designator with the frame number, there's a red stripe painted on the wall, red just like the Port navigation lights on the ship.
And notice the rows of rivets overhead. This was the top of the localized armored box the steering gear is in:

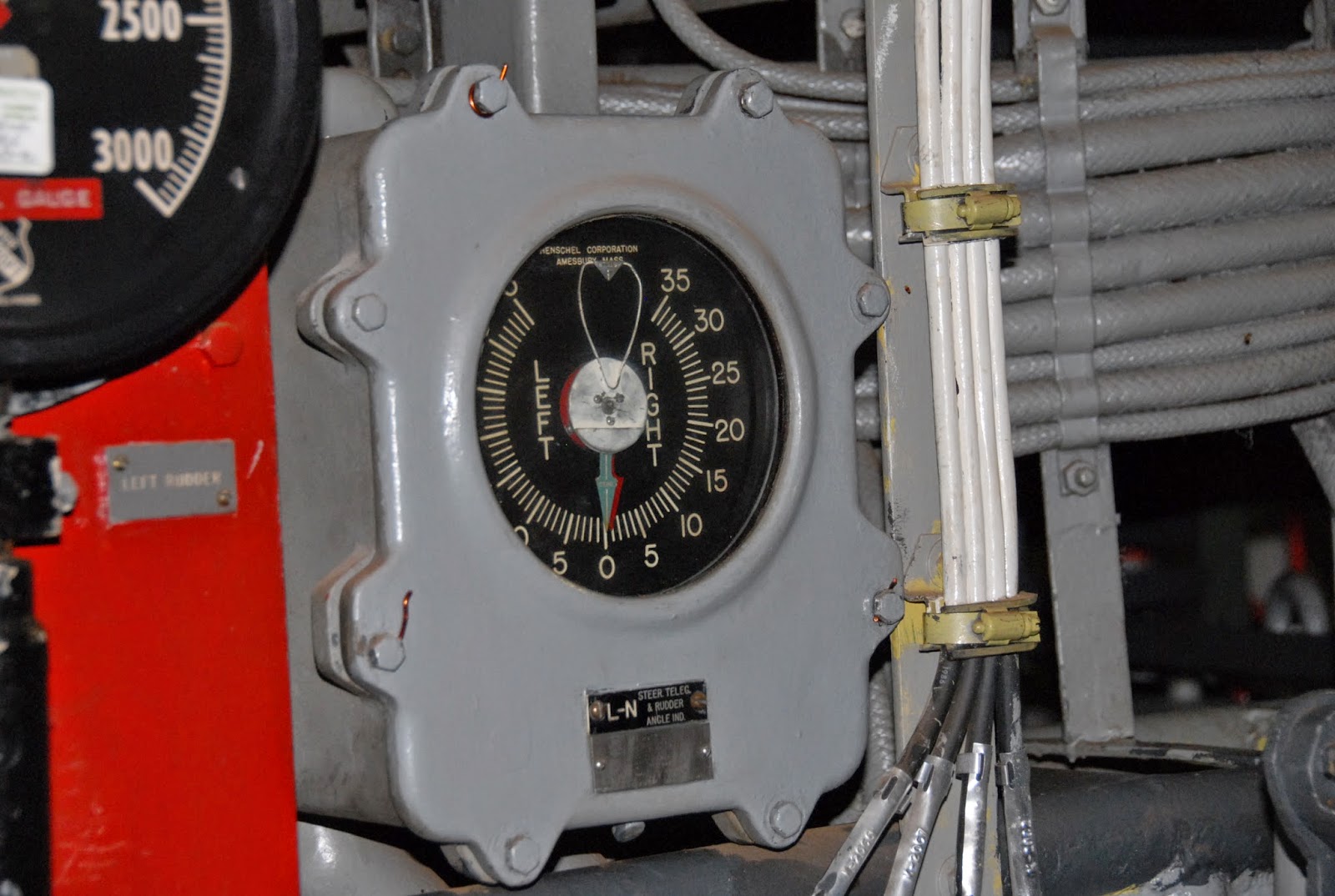

Rudder position indicator:
Aft end of the hydraulic rams that move the rudder. The large round plate in the left foreground is the top post of the actual rudder, and the "dogbones" on either side connect to the rams:
Close up of the brass tag on the dogbone:
Another view looking forward:
The hydraulic diagram of the system. Sorry for the flash hot-spot:
And a drawing listing all the lube points, and what type of grease/lube to use:
So, that was today's behind-the-scenes tour. While we were sitting in the barbershop, the question of "Turret Tours" was brought up. Turret #2, where the accident occurred, is absolutely OFF LIMITS, as it's a memorial to those who died in it. Current plans are being discussed for turret #3, and include putting in a plexiglas "bubble", where people could at least climb partly in to the turret, and look around, and a Virtual Tour" of the turret, being put together by one of our volunteers who's extremely good at taking panoramic photos, and stitching them together, giving views similar to what The Smithsonian does for some of it's aircraft interiors.
I've seen his panoramas of the radio room, and some of the superstructure areas, and their amazing.
Actual tours of the turret, and it's inclusion on the tour route, will require getting all the HAZMAT items out of the turret, and cleaning it up and painting the inside.
Hang on, it's on the "TODO" list for this year!
We started in the Crew's Mess, as the passageway we would take was off the Museum Store.
While the steering gear compartment is armored, it's outside of the "Armored Citadel", which runs from just forward of the #1 turret, to just aft of the #3 turret.
The blue painted area shown below is the top of the aft end of the armor.
As you can see, it's really thick:
After we went down one deck, below this first armored deck, we passed by a hatch leading down to the 4th deck. The stainless steel door to the right leads in to one of the "reefer" areas where refrigerated foods were stored. If you look carefuly at the ladder going down, you'll see some "flaps" mounted on the sides of it. When these were moved to cover the steps, it made them into a ramp so boxes could be easily slid up and down the ladder.
Pretty clever:
Here's another ladder going down to the refer area, and still another hatch under that, with grating on the bottom:
Now, the good stuff!
Getting closer:
One more armored hatch to go through, and we're there:
This is the control panel for running all the pumps and servos, and a place-of-last-resort to steer the ship from.
Notice the two bronze mounts in the picture. There are where the handwheels were located to manually (with hydraulic assist, of course) steer the ship.
The closer of the two got cut off in the picture, but in the one further away, at the bottom of the bronze mount, you can see a stub shaft with a white tag hanging on it. These were the stubs the wheels attached to.
The wheels were removed for some reason, and are "MIA" for the time being:
How do you know you're on the Port side? Well, besides the yellow painted designator with the frame number, there's a red stripe painted on the wall, red just like the Port navigation lights on the ship.
And notice the rows of rivets overhead. This was the top of the localized armored box the steering gear is in:
Rudder position indicator:
Aft end of the hydraulic rams that move the rudder. The large round plate in the left foreground is the top post of the actual rudder, and the "dogbones" on either side connect to the rams:
Close up of the brass tag on the dogbone:
Another view looking forward:
The hydraulic diagram of the system. Sorry for the flash hot-spot:
And a drawing listing all the lube points, and what type of grease/lube to use:
So, that was today's behind-the-scenes tour. While we were sitting in the barbershop, the question of "Turret Tours" was brought up. Turret #2, where the accident occurred, is absolutely OFF LIMITS, as it's a memorial to those who died in it. Current plans are being discussed for turret #3, and include putting in a plexiglas "bubble", where people could at least climb partly in to the turret, and look around, and a Virtual Tour" of the turret, being put together by one of our volunteers who's extremely good at taking panoramic photos, and stitching them together, giving views similar to what The Smithsonian does for some of it's aircraft interiors.
I've seen his panoramas of the radio room, and some of the superstructure areas, and their amazing.
Actual tours of the turret, and it's inclusion on the tour route, will require getting all the HAZMAT items out of the turret, and cleaning it up and painting the inside.
Hang on, it's on the "TODO" list for this year!
Saturday, January 10, 2015
Engineering Spaces Tour on the Battleship Iowa on Sunday
For the crew only, and I'm taking my camera!
Some of it I've seen before, but we're going to see the steerage area where the rudders are controlled, and some other things on the 3rd deck.
Pix to come Sunday evening......
And then on the 27th, I'll be taking a crew only tour of the superstructure.
Pictures will, of course, be posted following that tour......
Some of it I've seen before, but we're going to see the steerage area where the rudders are controlled, and some other things on the 3rd deck.
Pix to come Sunday evening......
And then on the 27th, I'll be taking a crew only tour of the superstructure.
Pictures will, of course, be posted following that tour......
Friday, January 9, 2015
Tuesday, January 6, 2015
Those Who Cannot Remember The Past.......
Got this from a friend's email.
I think it says it all.....
I think it says it all.....
Saturday, January 3, 2015
"Unbroken" - A Movie of Courage and Valor
We went to see "Unbroken" tonight, and I recommend it to all.
It's the story of Louis "Louie" Zamperini from Torrance, CA, and is based on the book "Unbroken: A World War II Story of Survival, Resilience, and Redemption" by Laura Hillenbrand.
My wife bought the book several months ago, and was waiting for the film to come out.
I haven't read the book yet, but I'll get started on it in the next few days.
It's a stirring movie, and doesn't pull any punches concerning the treatment of Allied POW's in Japan.
Highly recommended, and take a box of Kleenex with you.
It's the story of Louis "Louie" Zamperini from Torrance, CA, and is based on the book "Unbroken: A World War II Story of Survival, Resilience, and Redemption" by Laura Hillenbrand.
My wife bought the book several months ago, and was waiting for the film to come out.
I haven't read the book yet, but I'll get started on it in the next few days.
It's a stirring movie, and doesn't pull any punches concerning the treatment of Allied POW's in Japan.
Highly recommended, and take a box of Kleenex with you.
Subscribe to:
Posts (Atom)
